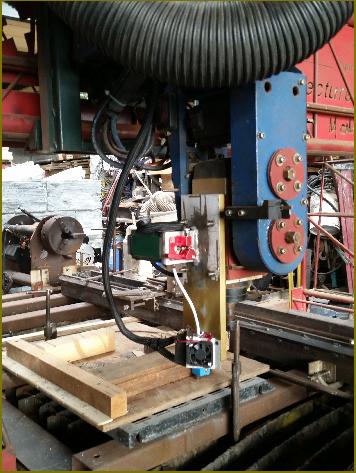

3d printer add on for CNC machine

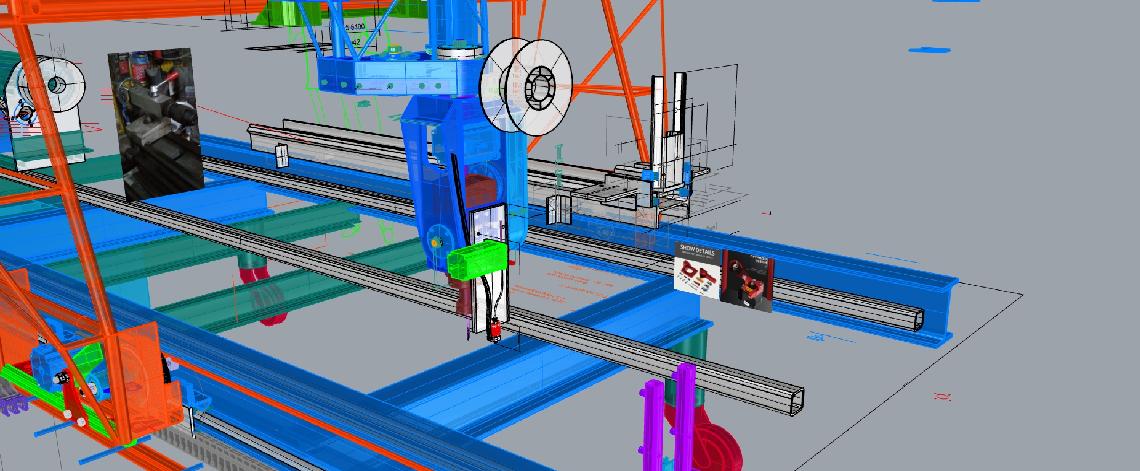

3d printer add on to cnc machine

  • Stepper motor to feed wire

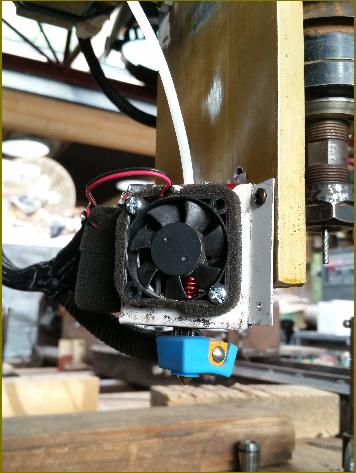

  • Hot end with nozzle
          requires cooling fans to blow over heat sink

  • Power supply for hot end
  • Power supply & thermal control for hot end cooling fans

  • Power supply, step & dir signal for stepper (use C-axis driver & power supply

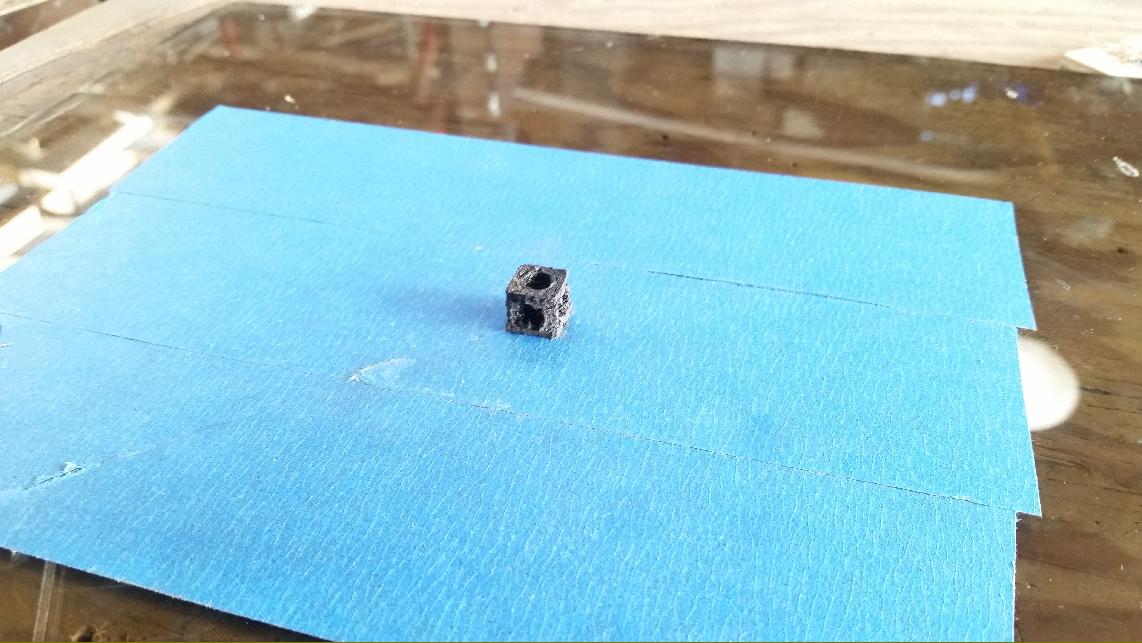

  • Heated bed (1/4" tempered glass plate)
          220V heat pad for 3d printer

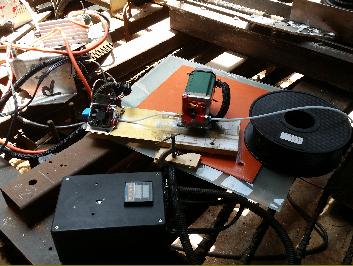

          heat controller with power source, solid state relay

  • Cooling fan to cool print after first layer (or 2)

  • 3 external relays from Mach3 to control heated bed, hot end, one for print cooling fan (preferrably variable speed--wish list)
    •
