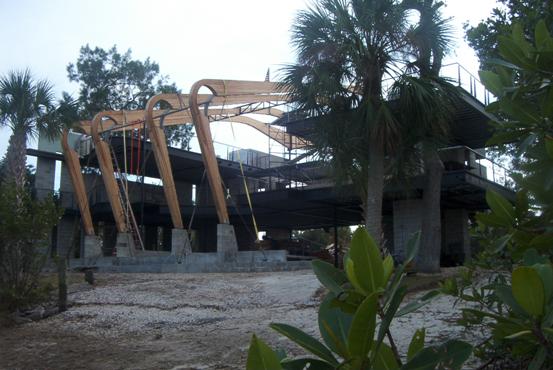

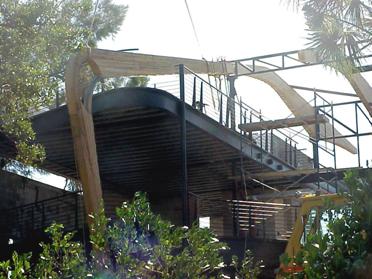

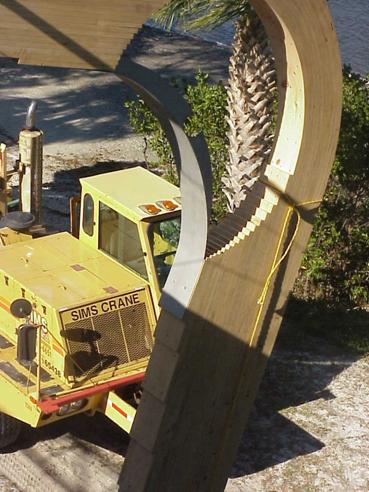

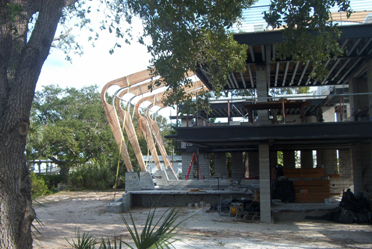

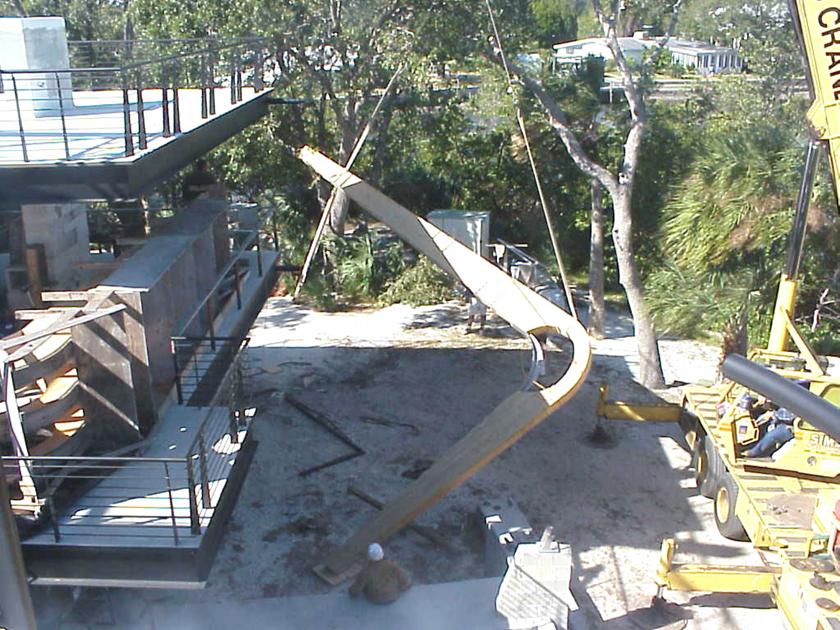

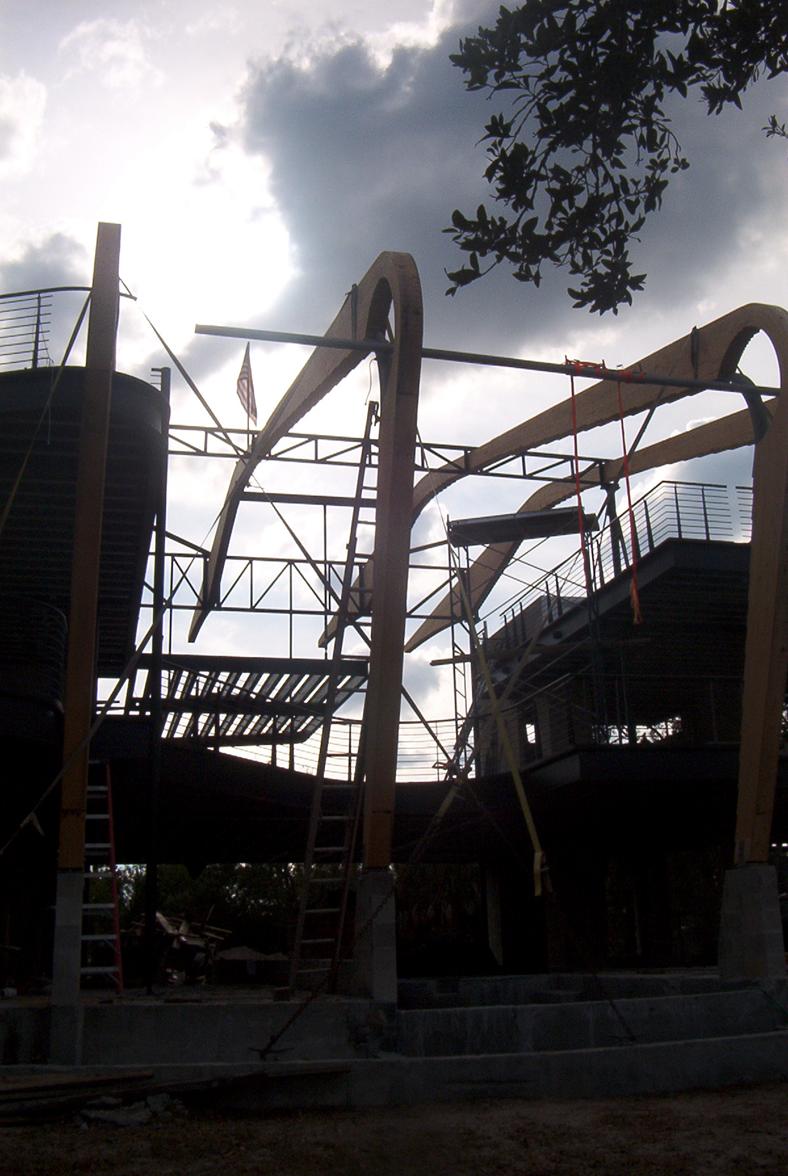

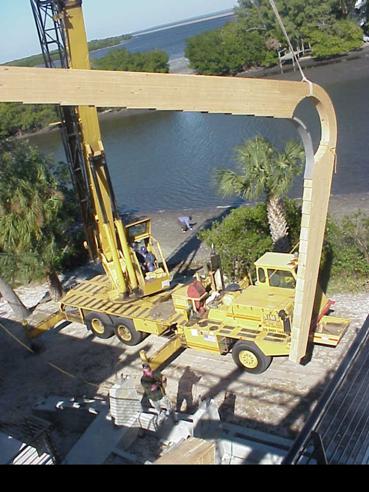

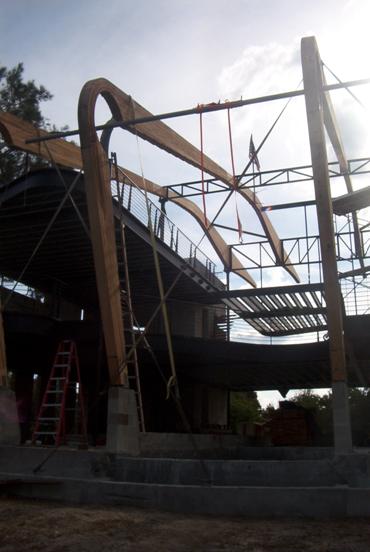

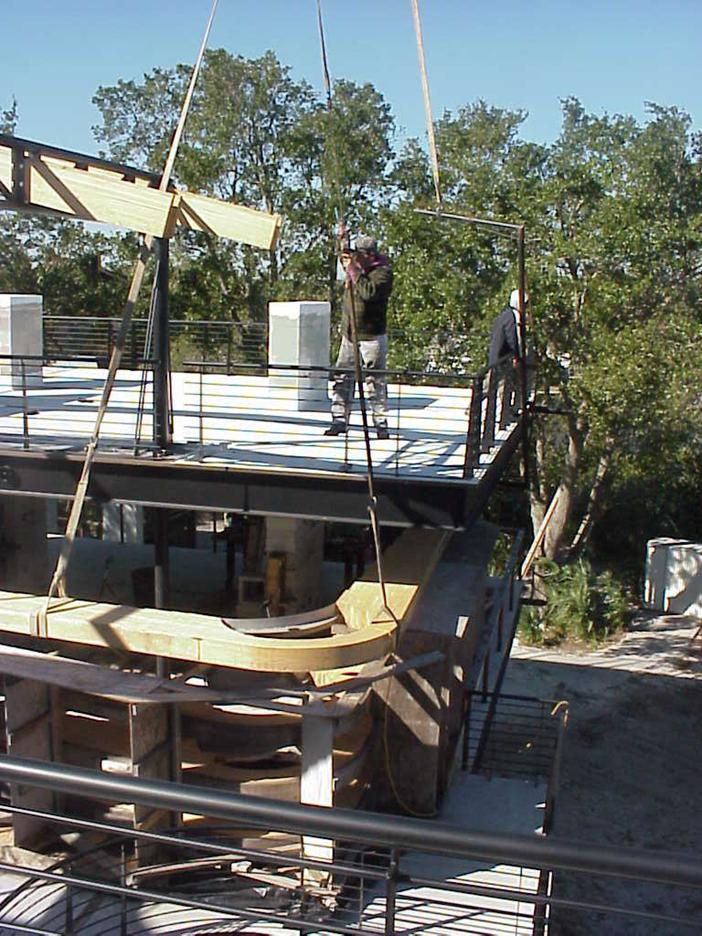

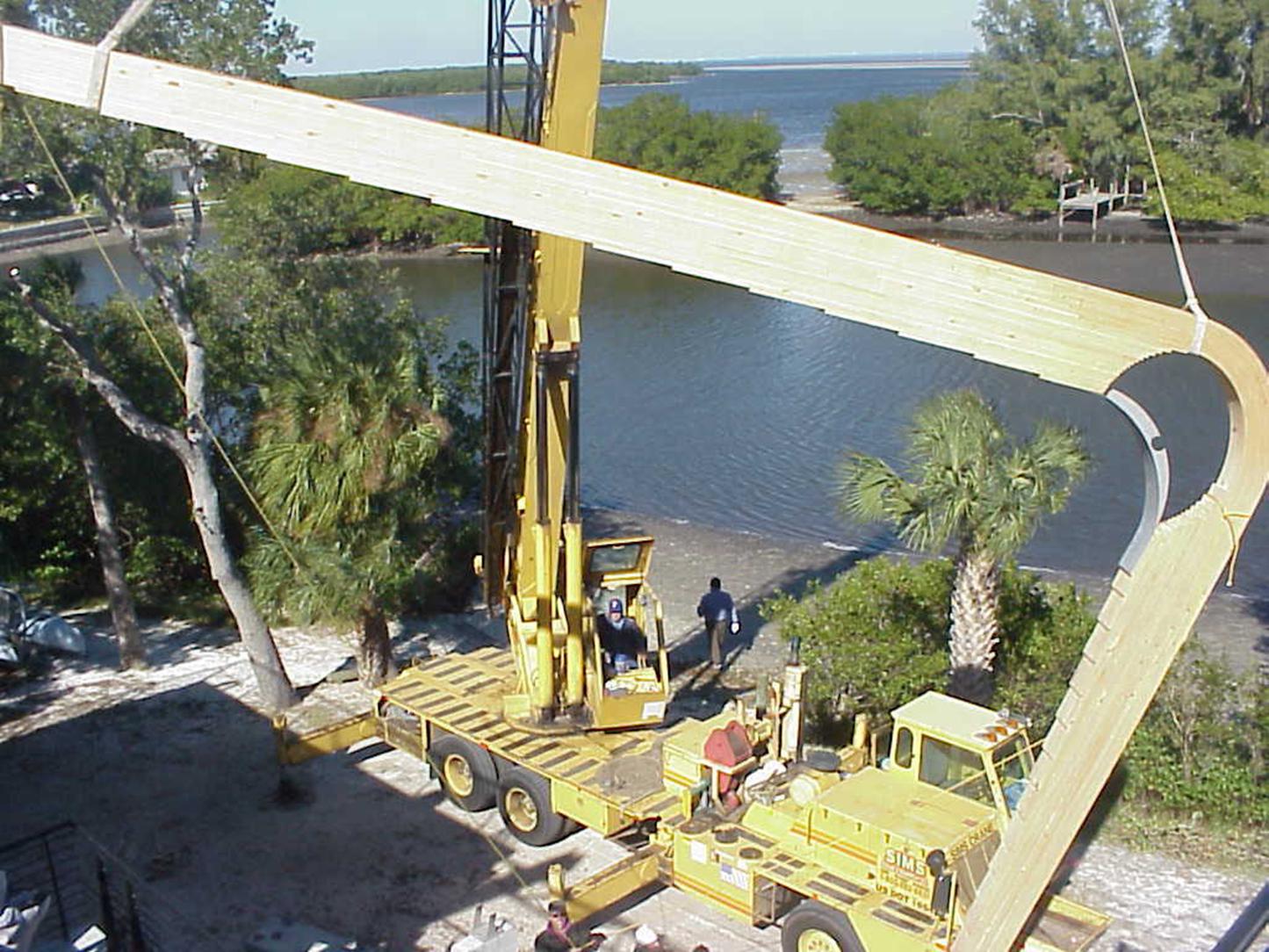

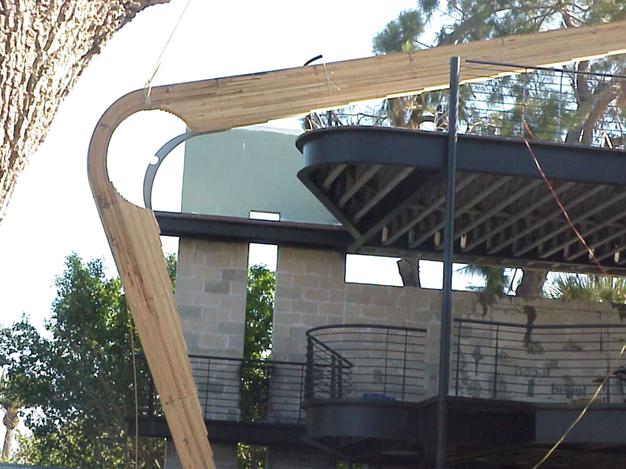

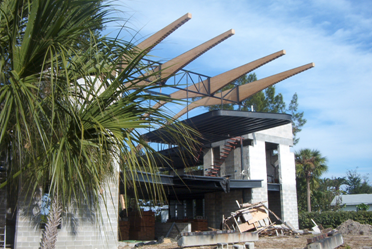

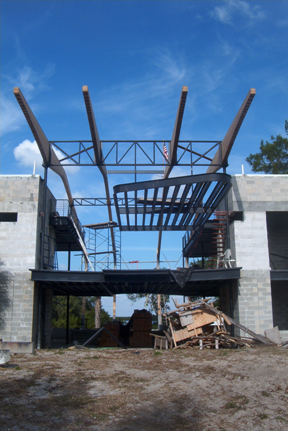

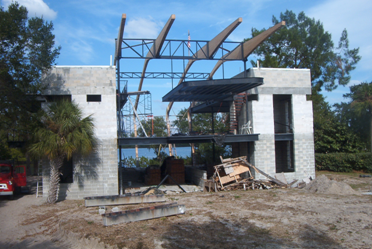

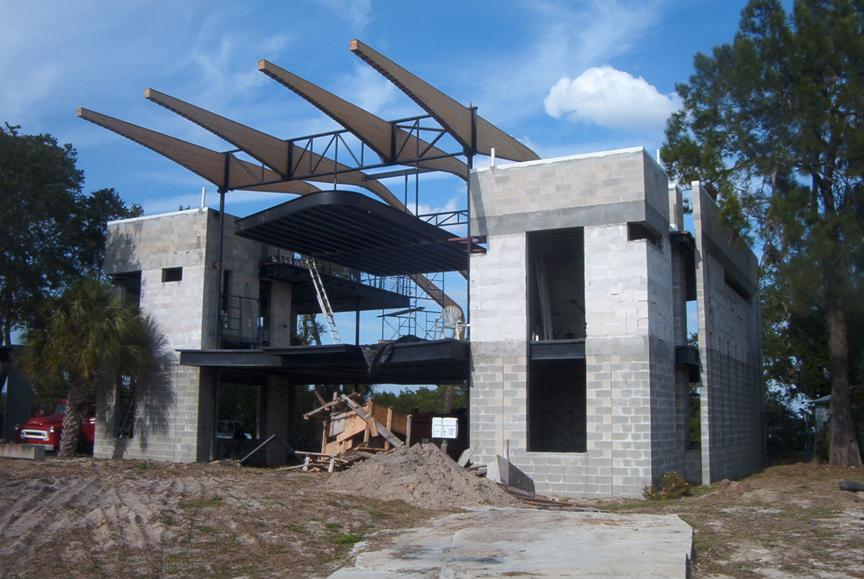

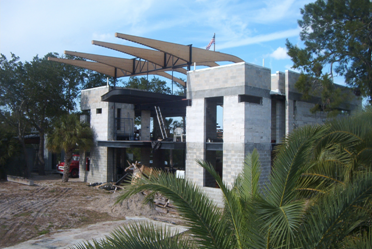

Here’s how the L-shapes were lifted out from under the upper roof. The key is the C-shape spreader bar to reach under to pick the long leg. The beam section is then set on the ground, re-rigged to hang at the correct angle and is swung into place.

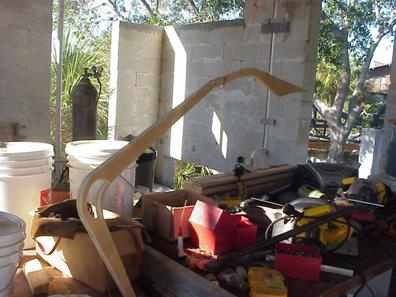

The 1” scale rigging model was the key to this going smoothly. |
|
. . . aaah, photoshop . . . |
|

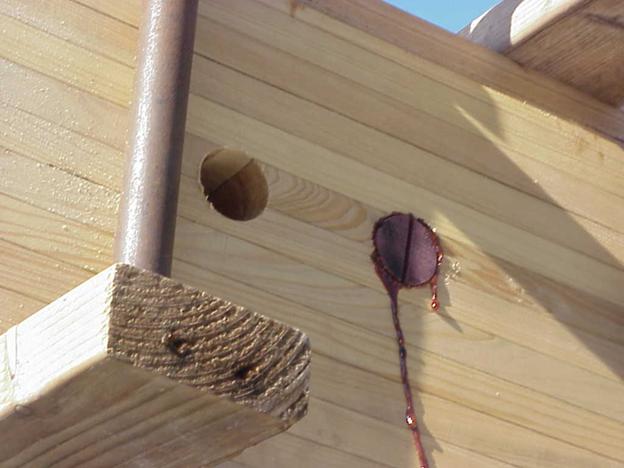

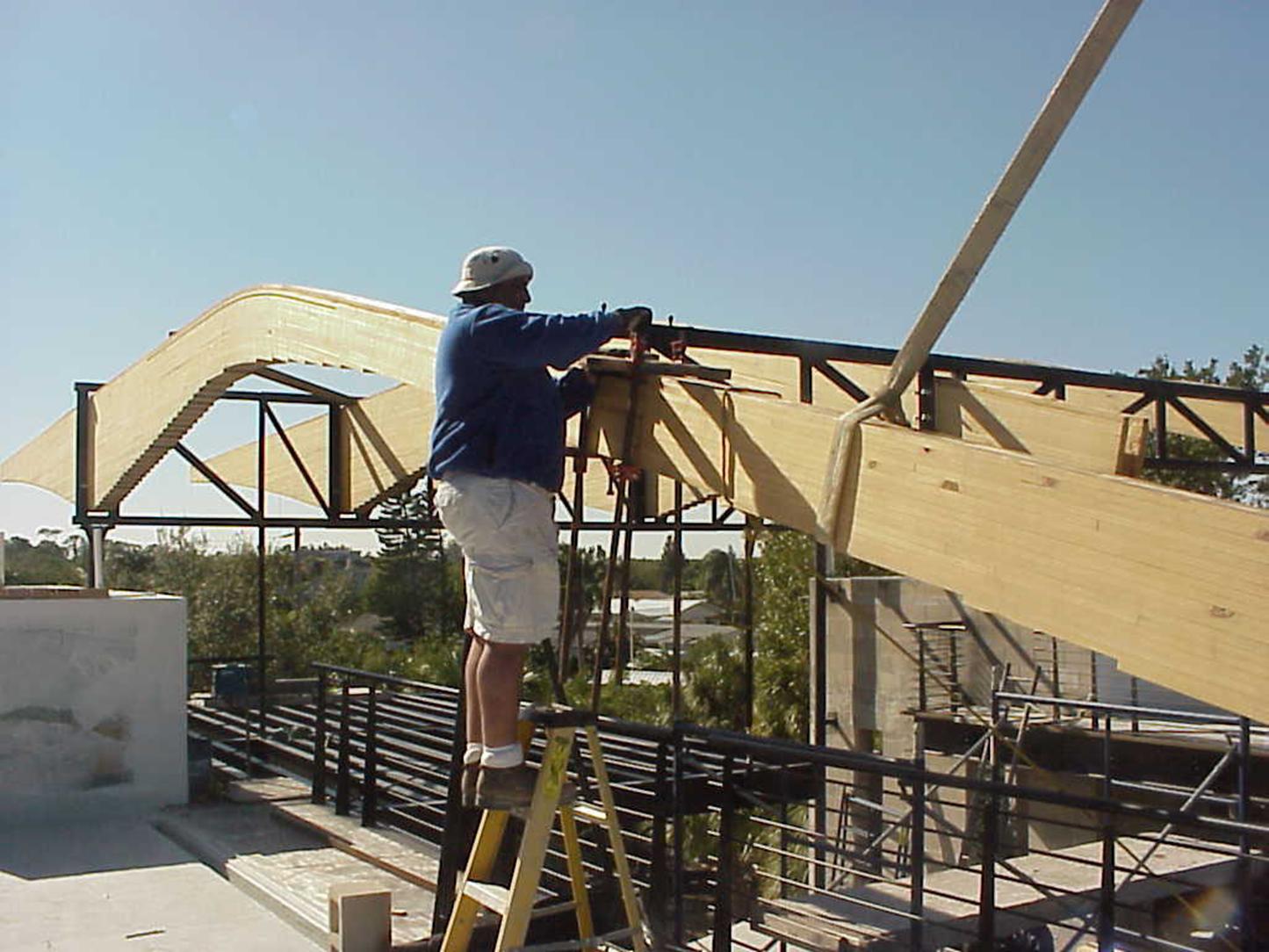

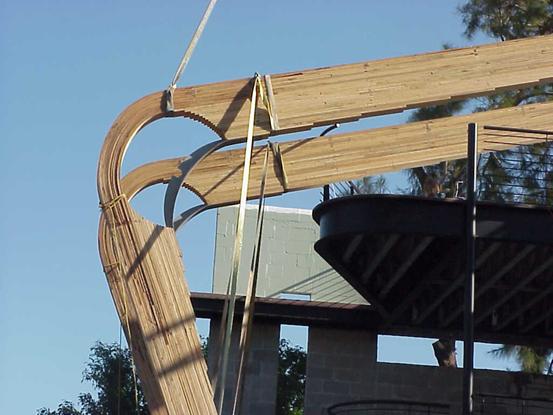

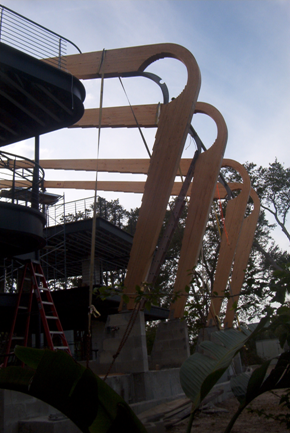

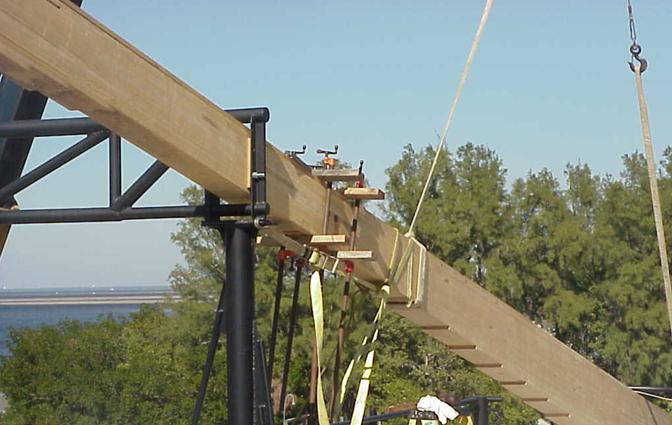

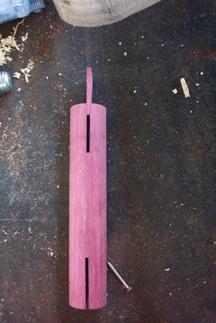

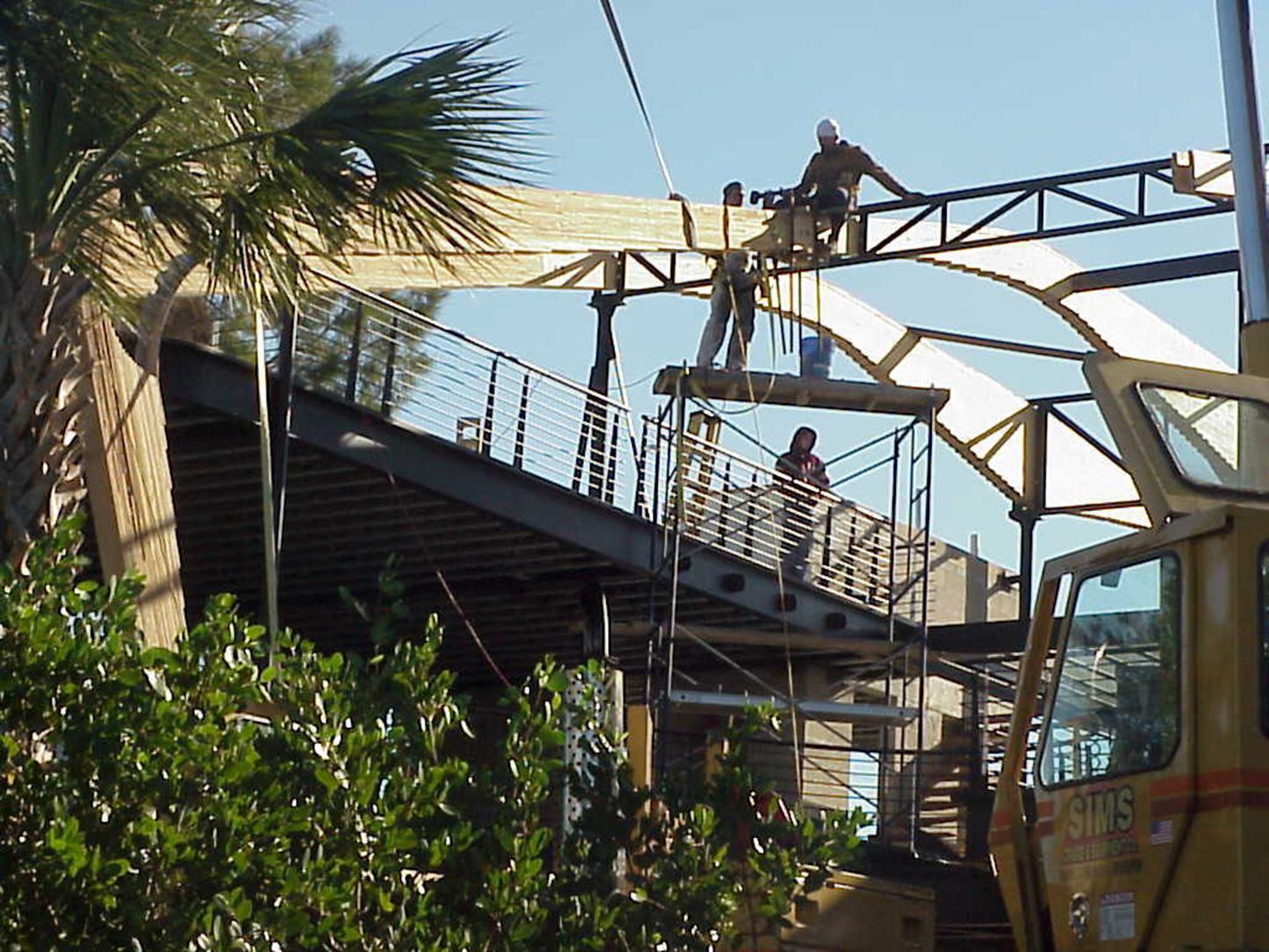

Here’s some more detail on the open mortise joint & the purpleheart pins that join the main 53’ beams to the L-shapes creating the screen space over the pool & deck spaces. Mike Rahal clamps the first pair of beams to be joined. |
|

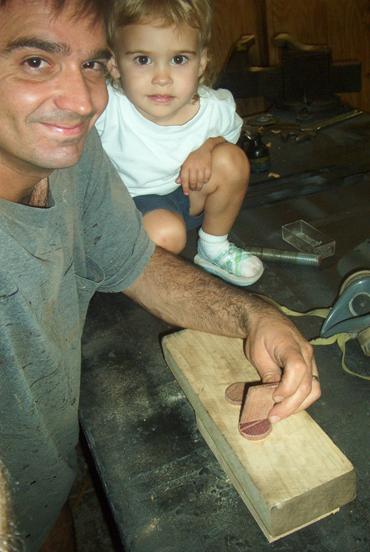

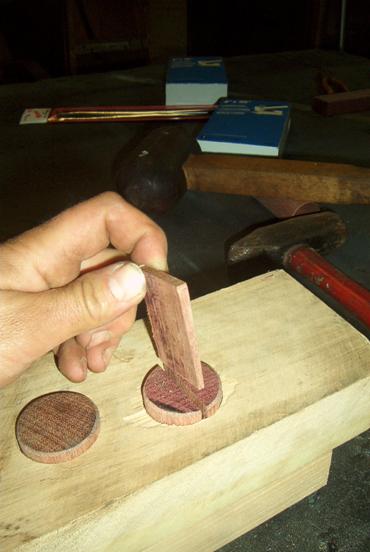

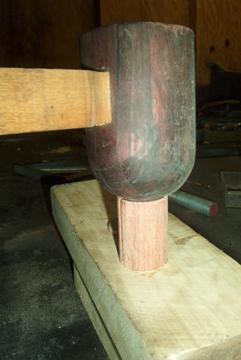

My oldest daughter tests out the prototype purpleheart pin/wedge with me for the joint. |
|
As I warned the owner, the exposed cypress creating the screen space would eventually need replaced because of dry-rot—to be re-created in aluminum . . . A good 10 years later. |
