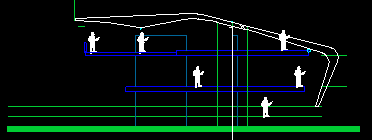

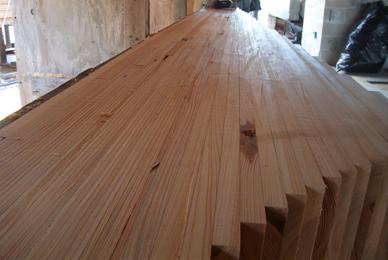

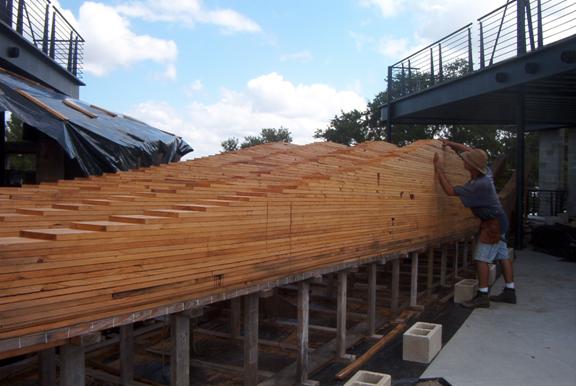

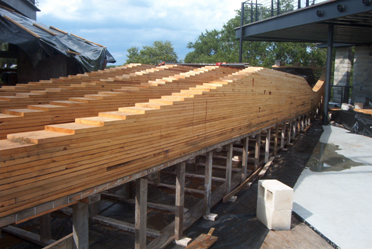

They’re getting close—this is like layer 35 of 48 total. |
|

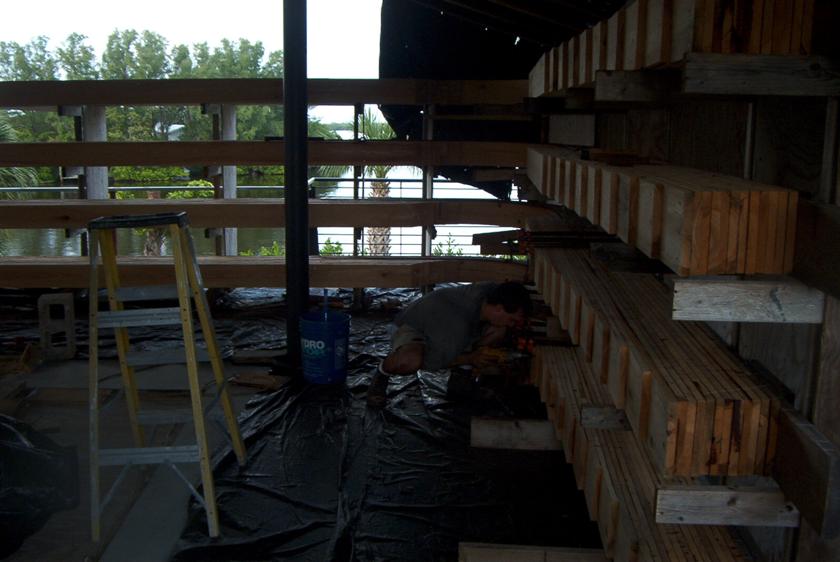

They are beginning to take shape . . . Only 10 layers left! |
|

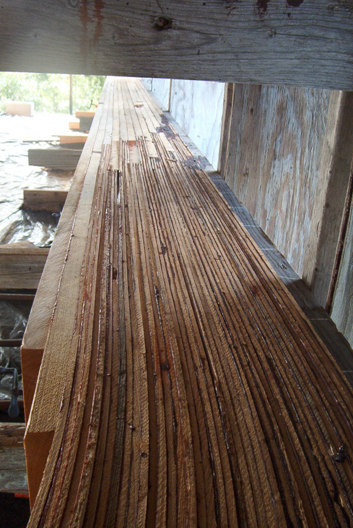

Ok . . . Here they are with all layers glued & screwed in place—3 sep 04. |
|

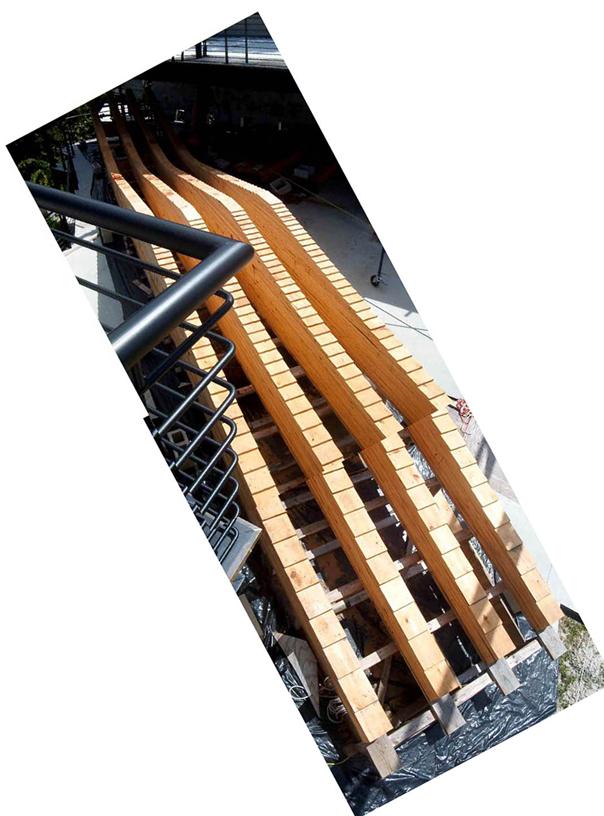

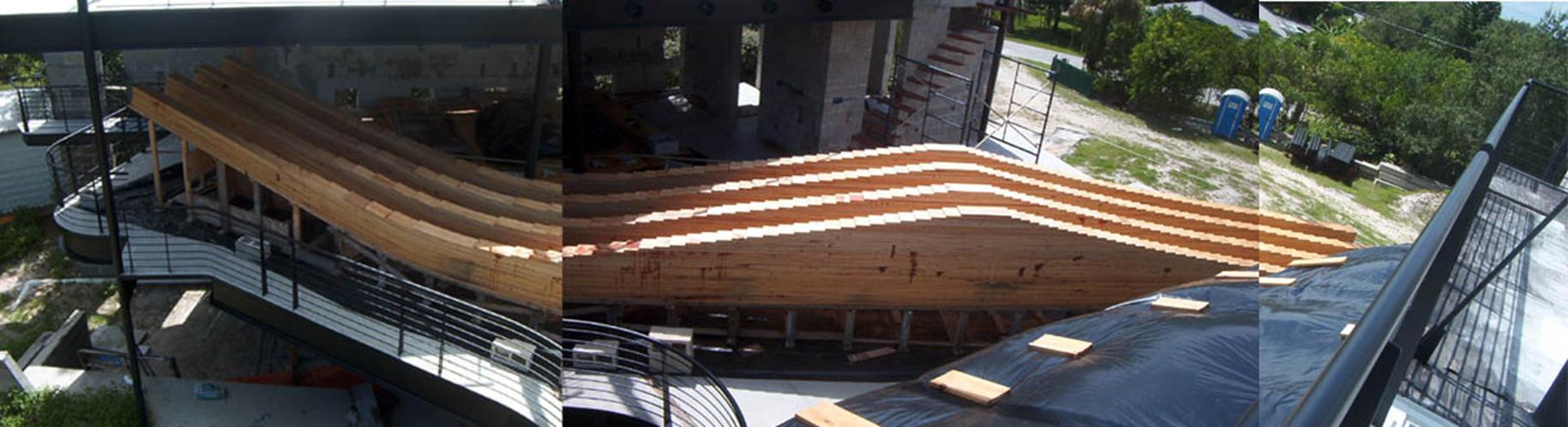

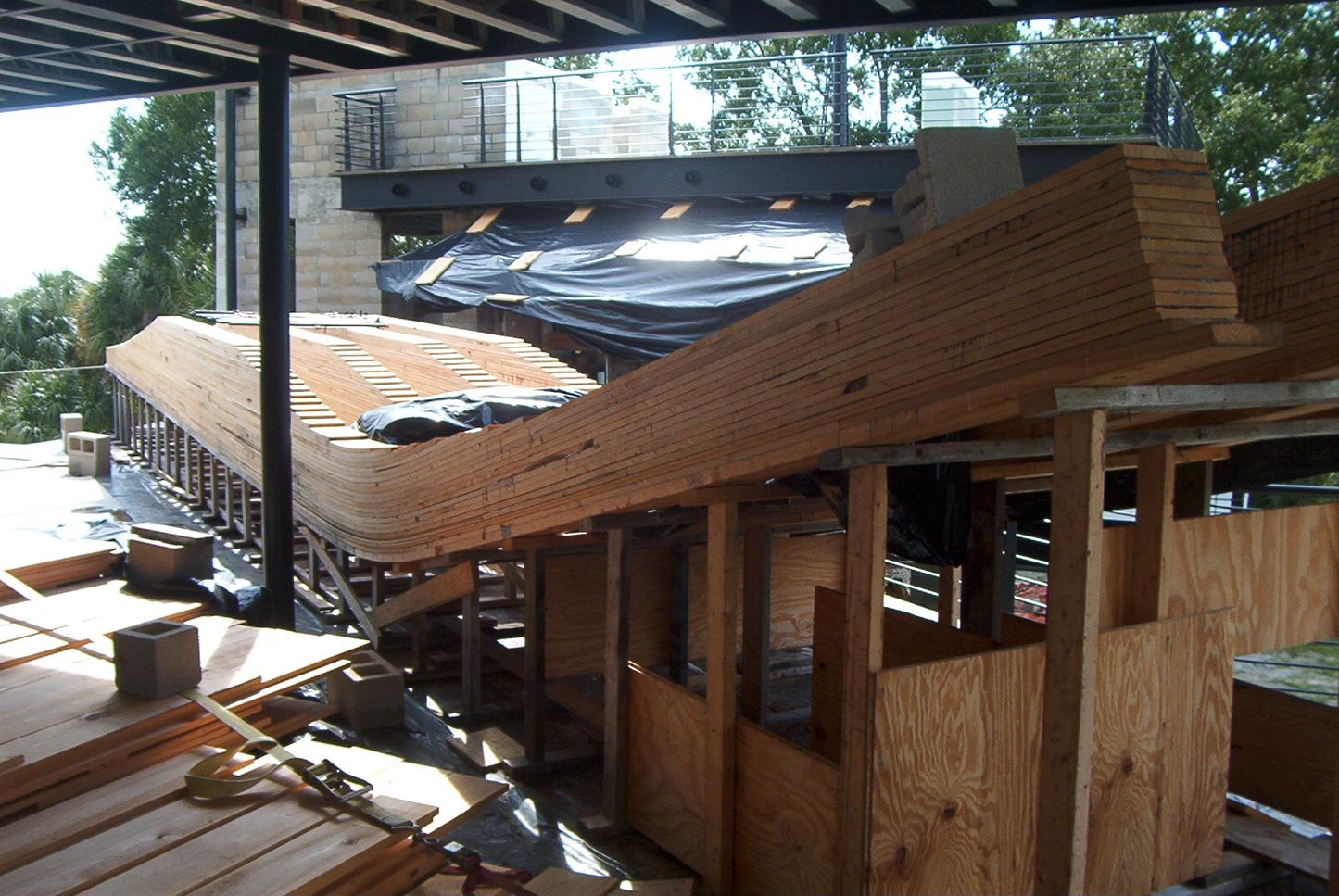

Check out the size of these things . . . 53’ long, 8”wide, & 3 1/2 feet deep! - & that’s just half of the full glu-lam form. |
|

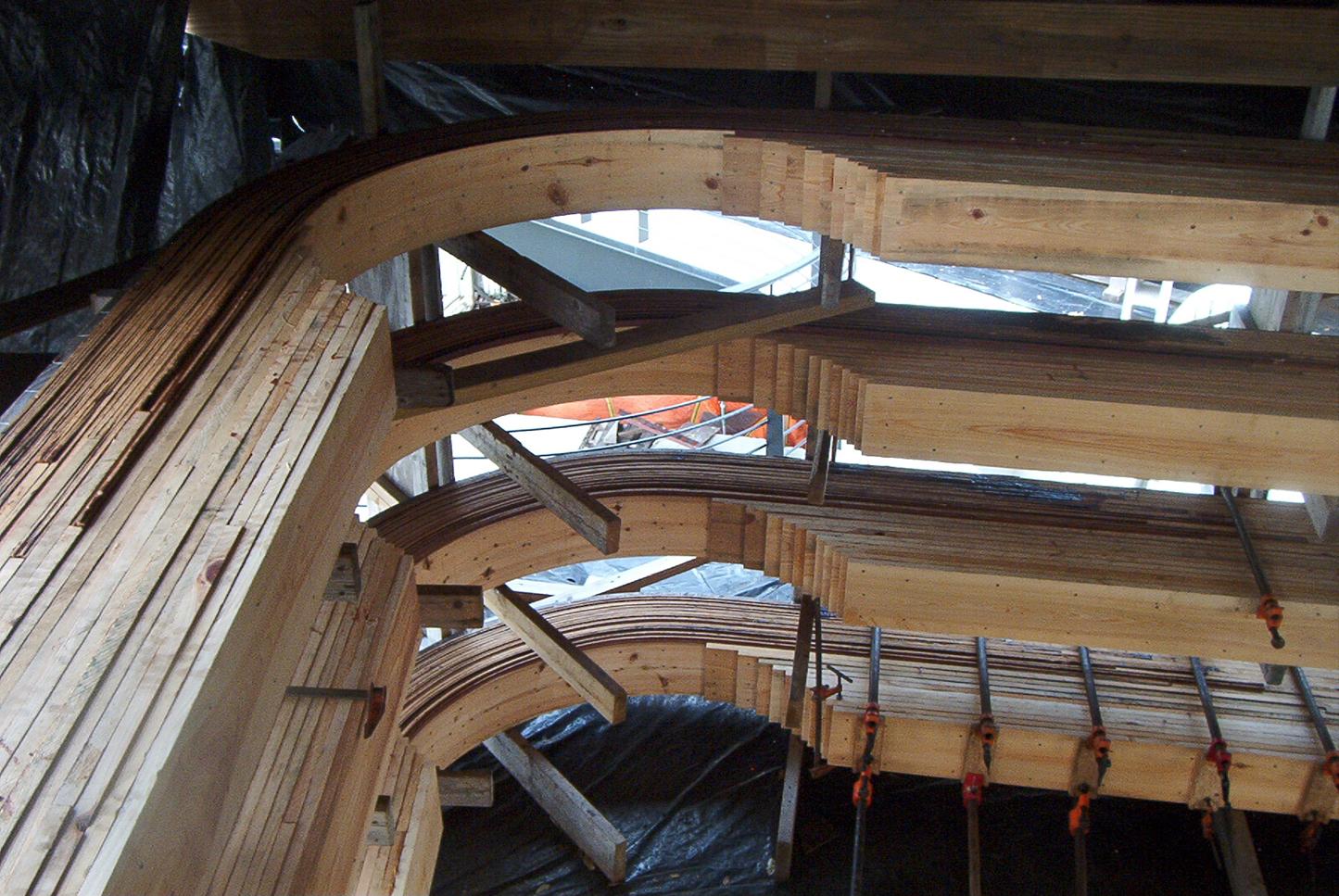

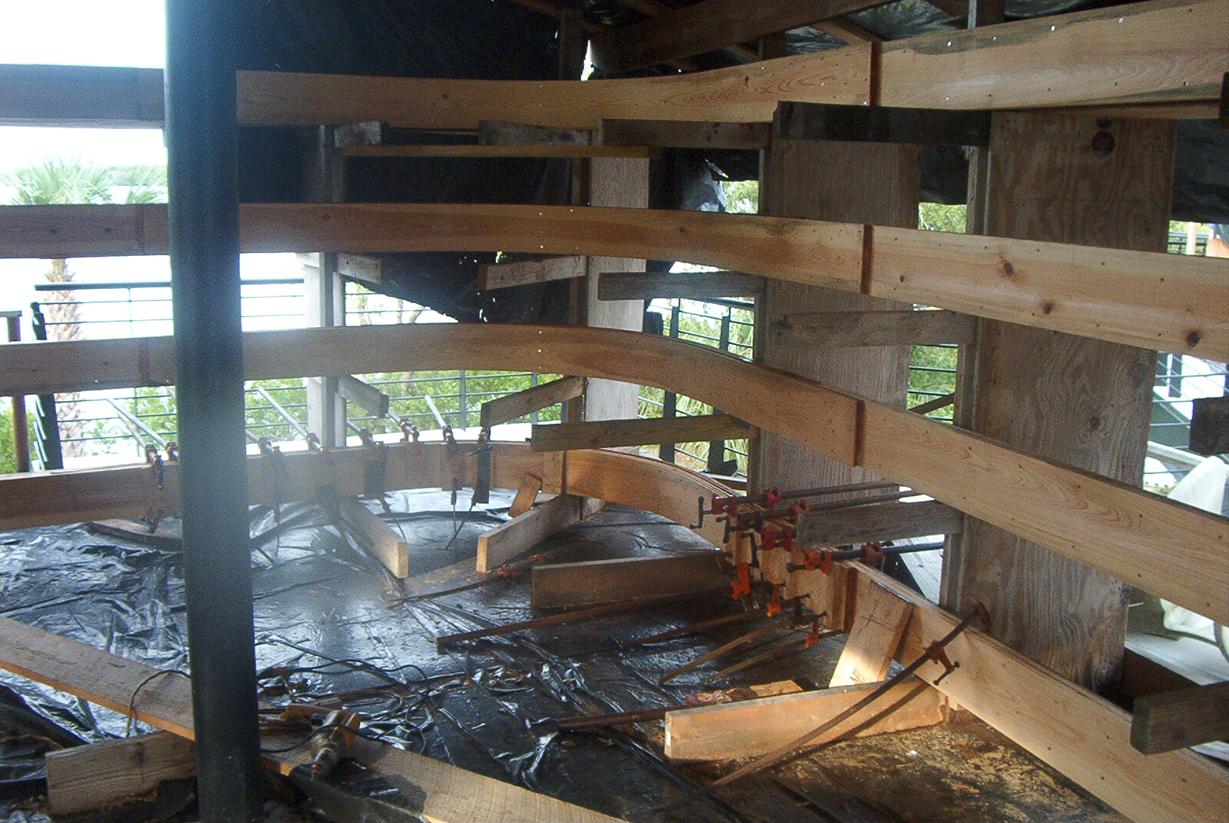

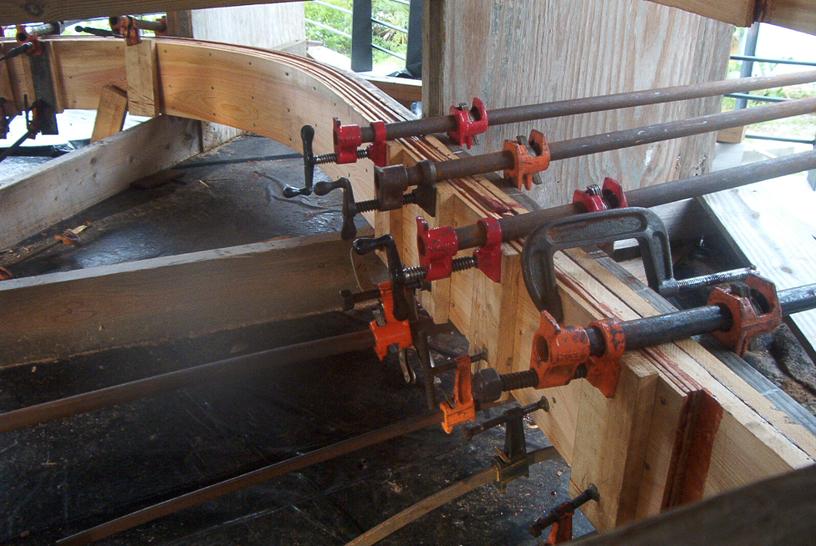

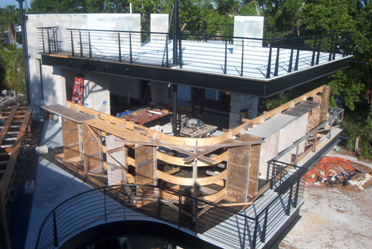

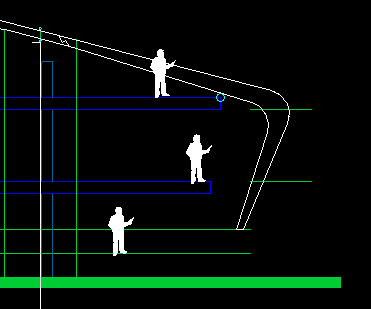

The L-Shapes

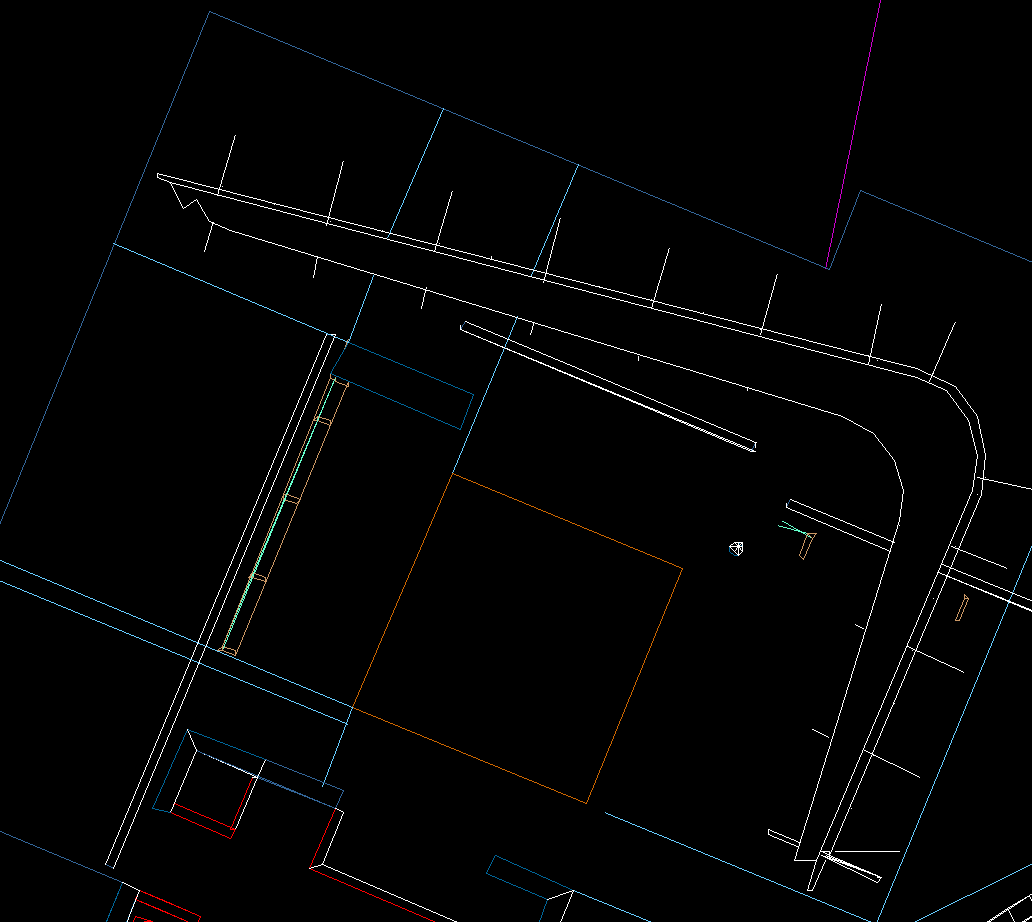

These had to be placed with a plan to get them out with a crane when it came time to hang ehem. With a C-shaped crane spreader bar, it wasa possible to grab the one end from underneath the roof plane, then set them on the ground, and re-rig, then hoist into place. |
|

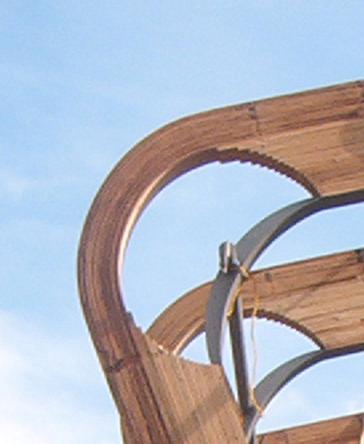

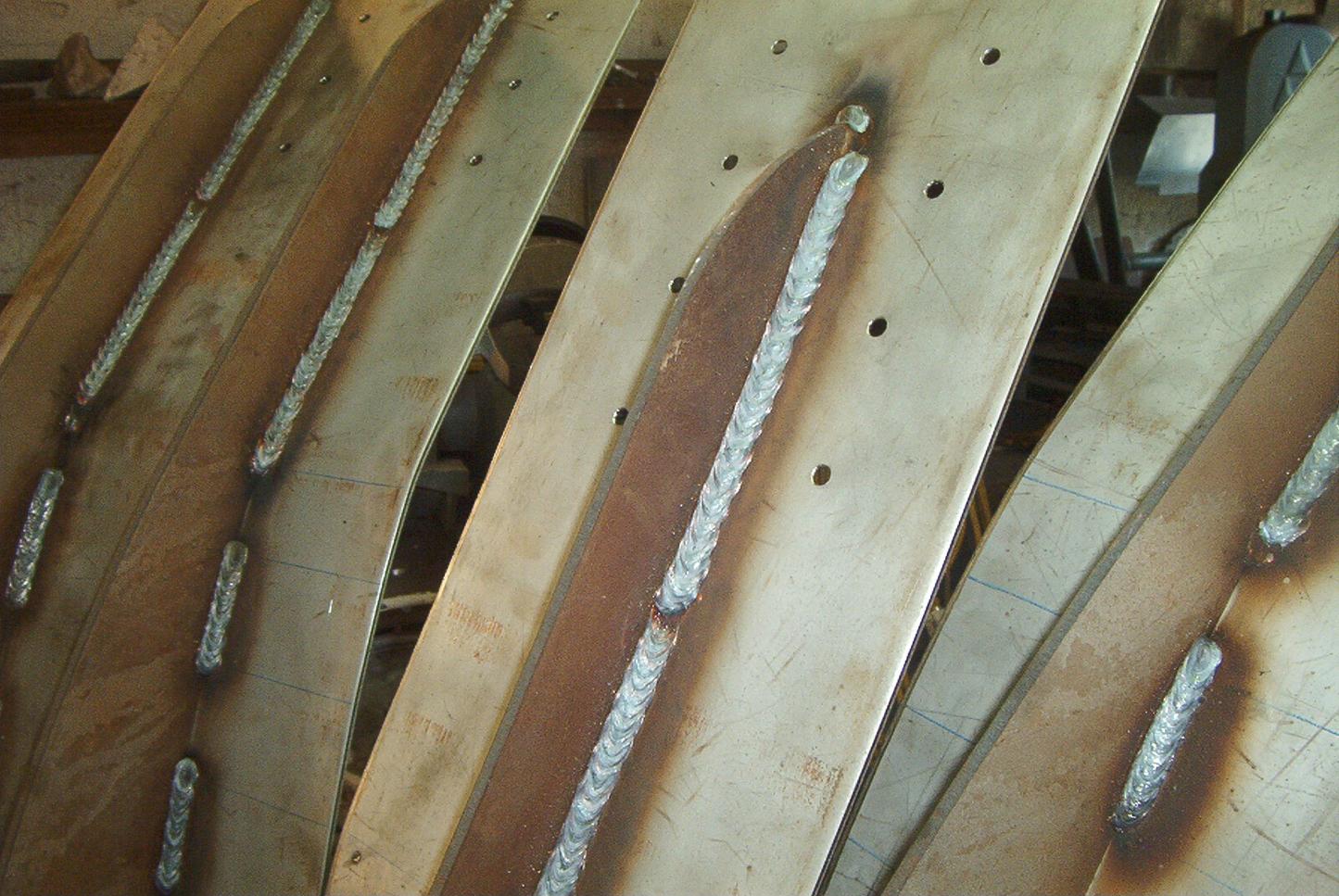

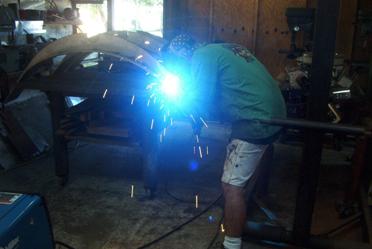

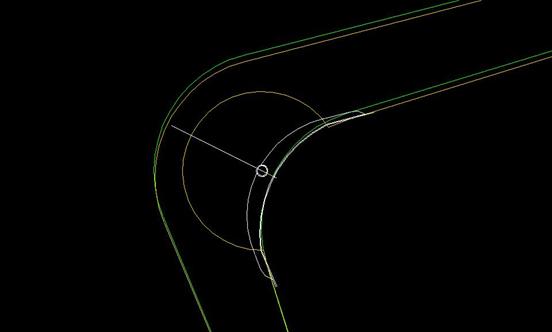

The final resolution of the “knee-joint” was made from 1/4” 316L stainless steel plate that was cnc plasma cut, then shop welded to form a plate that could screw to the glu-lams and allow a 3” 316L SS pipe to run laterally providing lateral stability and resolving the bending couple forces while allowing the minimum dry bending radius for the cypress at approx. 1/4” thick. |
|

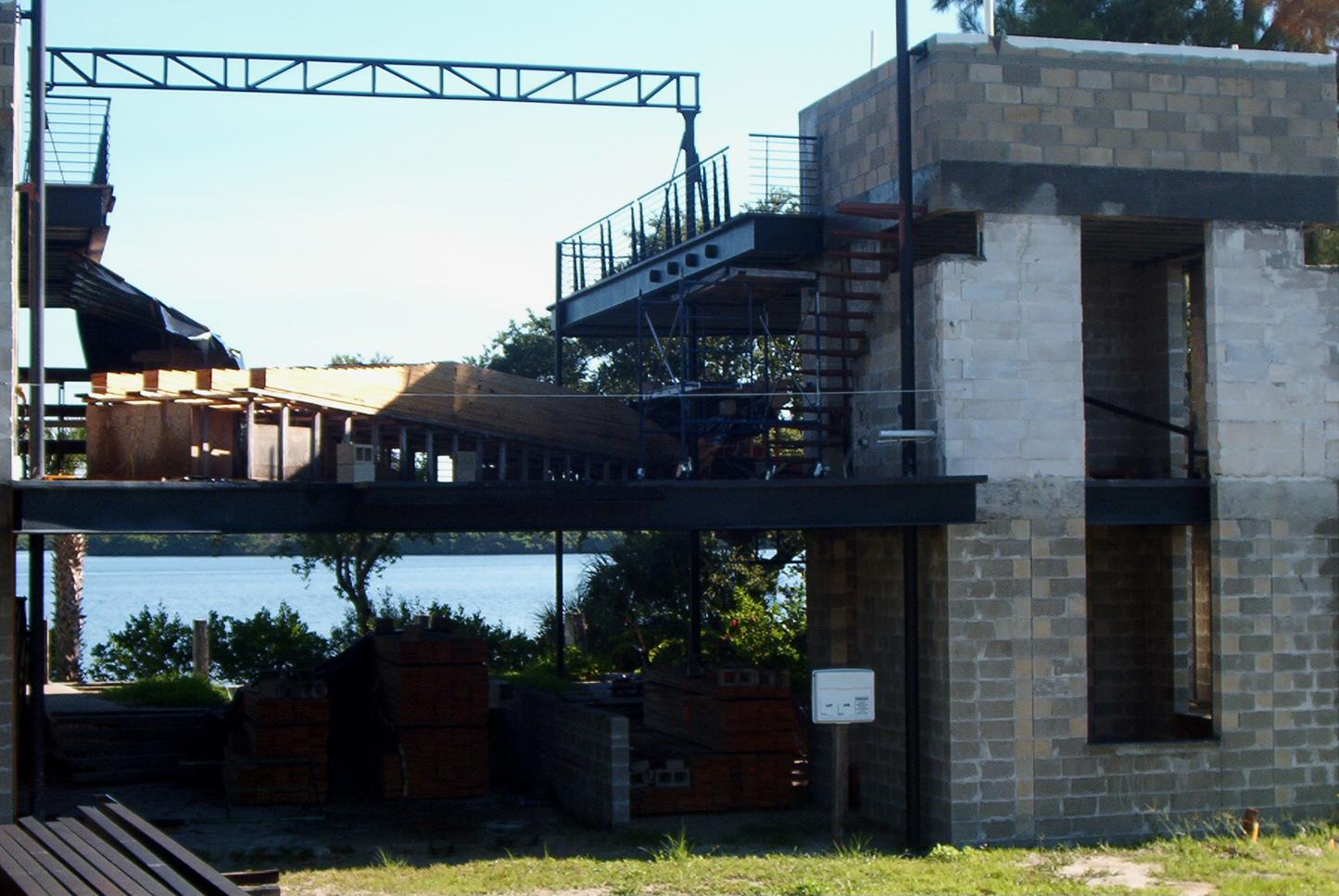

Next we hang the beams . . . It’ll be an operation . . |
