In Progress - 6330 House  Project Log

Curtainwall Hardware



01 Casement Operator

Stainless Steel



02 Door Throw Bolt Concealed



03 Long Range, High Load Dual Throw-bolt

For doors and in-swinging casement windows.

316L Stainless steel and cnc machined aluminum.



04  Clerestory Operator

CALVINO architecture studio



Mike Calvino, architect

|      Contact      |      Projects      |    About     |

Curtainwall Hardware  -  Casement Operator

Casement Operator

For out-swing casement windows, long range

316L Stainless steel and machined Bronze

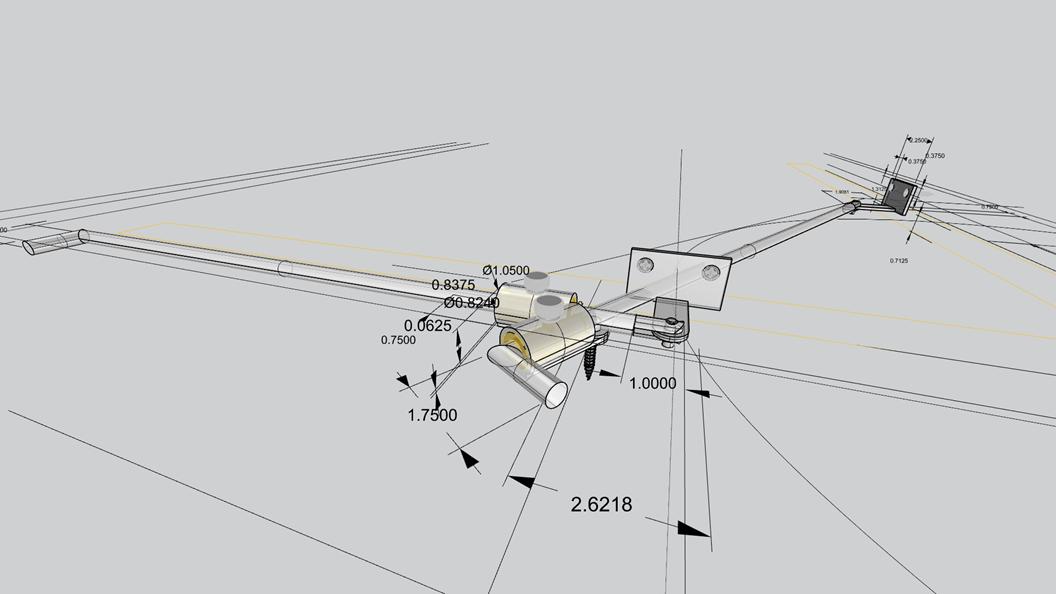

Right:  shown both open and closed for testing purposes in Rhino3d.



The bushing here is lengthened to reduce the chances of binding which can occur if the bushing is too short.  It can tweak sideways & binds the 1/2” stainless rod.

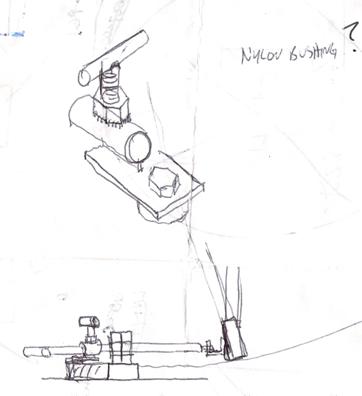

Below:  Sketch from ~2006:  first model of the stainless steel rod operator, used for The Ruskin House awning & casement windows.

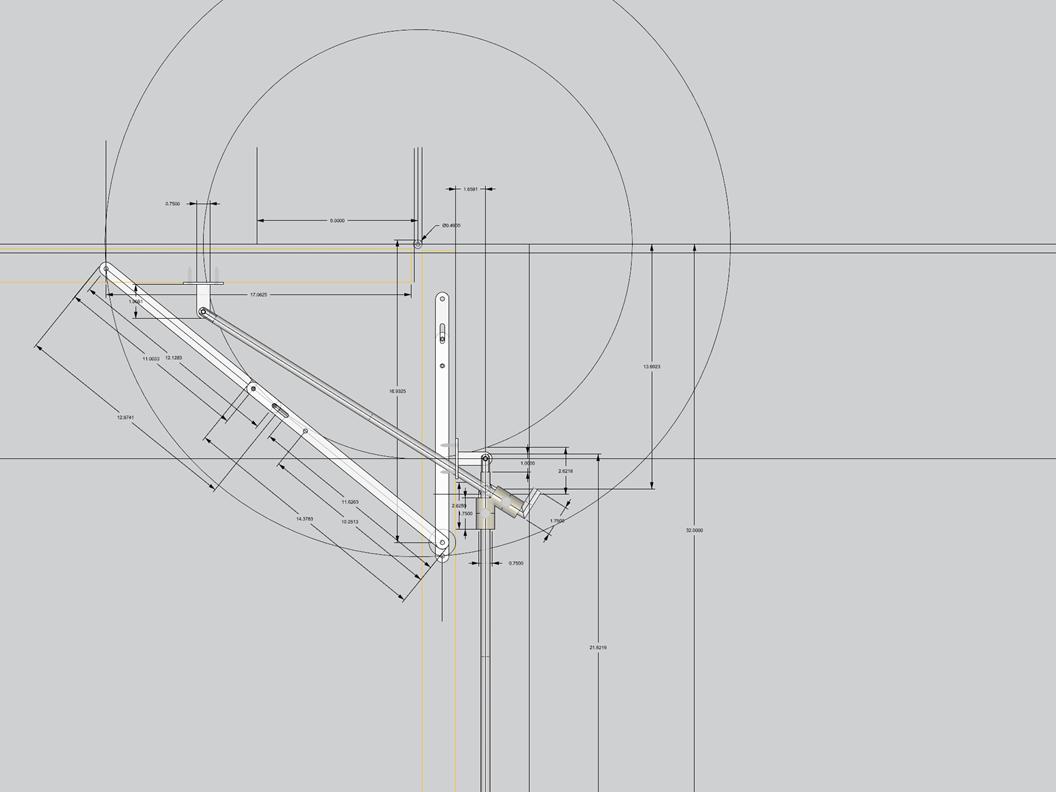

Right:  Rhino sketch with both an aluminum stay bracket and the rod closer.

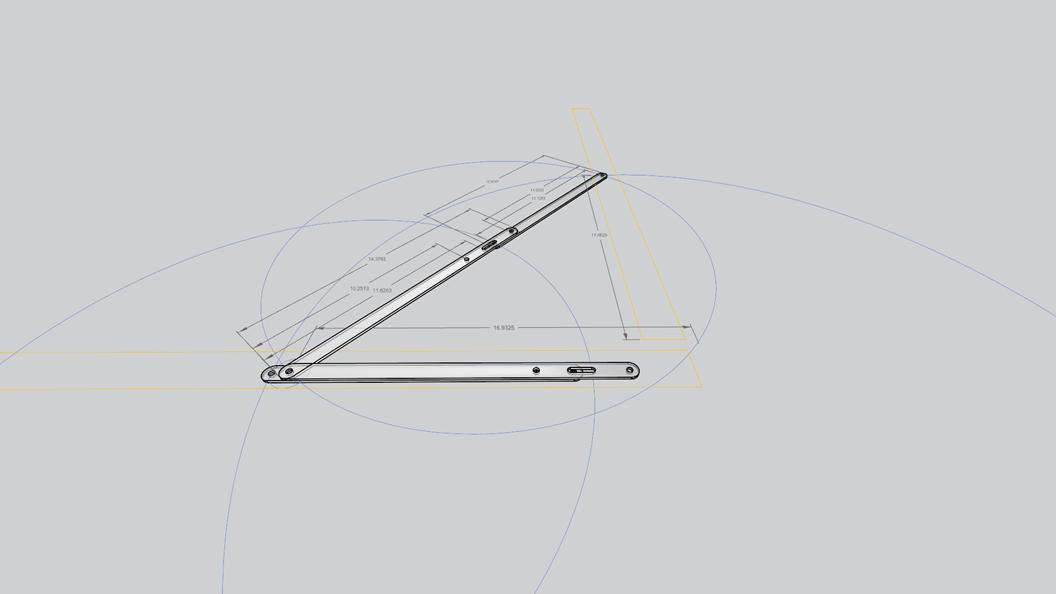

Right:  aluminum stay bracket, folded & extended.
